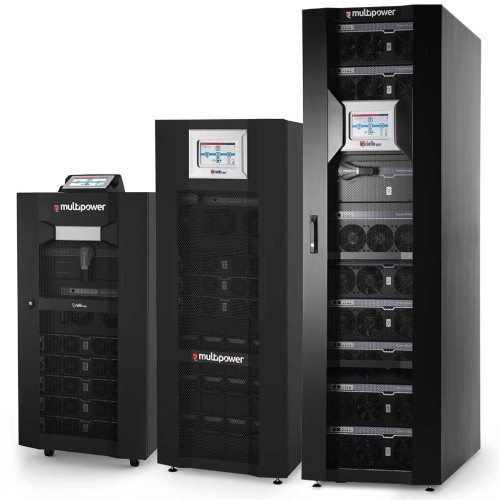

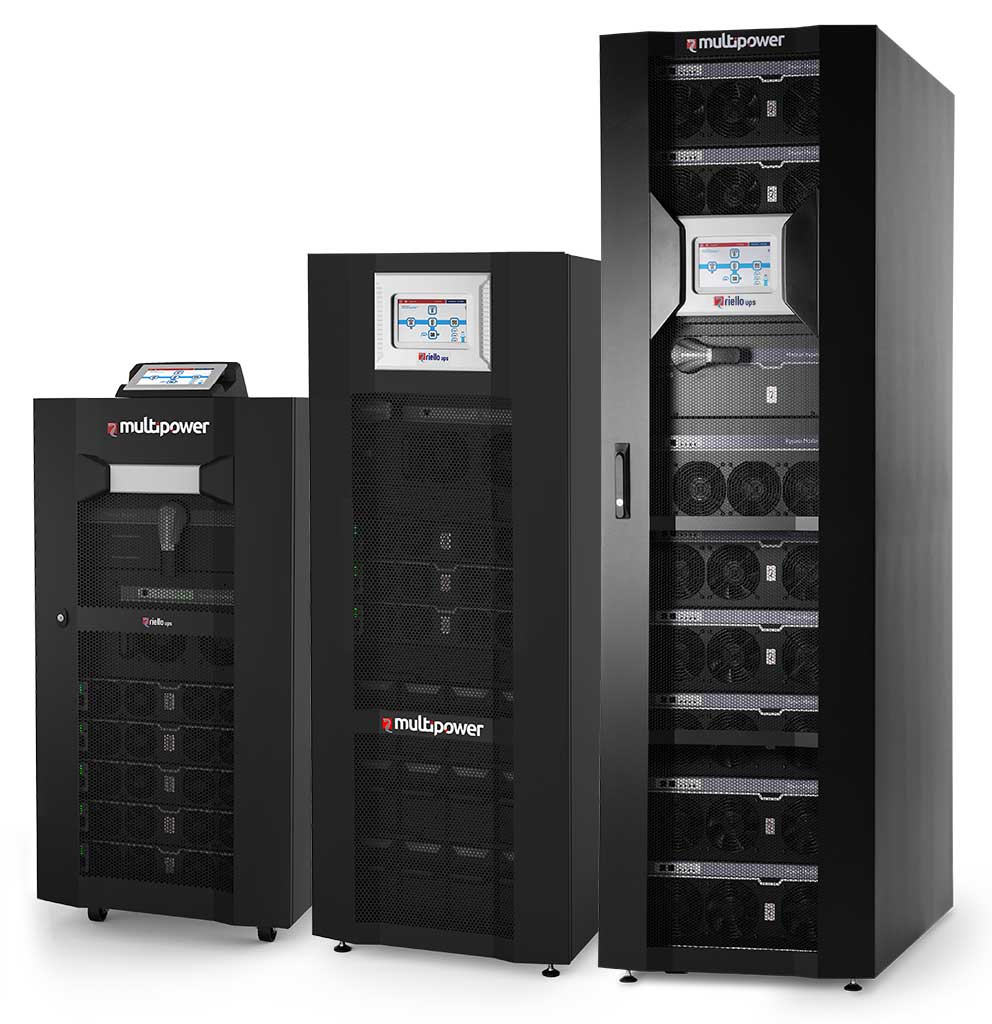

Riello Multi Power Modular UPS

Multi Power Modular UPS: Scalable, High-Efficiency Power Protection for Critical Applications

Unmatched Scalability and Flexibility for Growing Demands:

The Riello Multi Power Modular UPS delivers an innovative, "pay as you grow" solution, allowing you to seamlessly scale your power infrastructure to meet evolving needs. With modular configurations ranging from 15kW to 1008kW, and the ability to parallel up to four cabinets, this UPS provides unparalleled flexibility and redundancy. Hot system expansion capabilities ensure that you can add or replace modules without interrupting critical loads, guaranteeing continuous uptime. Choose from 15kW, 25kW, or 42kW modules, and space-saving combination cabinets to optimize your power setup.

Maximum Uptime and Downtime-Free Maintenance:

Engineered for maximum availability, the Multi Power UPS features hot-swappable power and battery modules, enabling maintenance and upgrades without powering down the system. This design minimizes downtime and ensures the continuous operation of your critical applications. The user-friendly 7-inch LCD touchscreen display and advanced communication options simplify monitoring and control, while the robust design ensures reliable performance even at high operating temperatures.

Exceptional Efficiency and Power Density:

The Multi Power UPS achieves exceptional efficiency, up to 96.5% in online double-conversion mode, minimising energy consumption and operational costs. Its high power density (466 kW per m²) and full-rated unity power factor (pf 1) maximise performance while minimising footprint. The three-level inverter and IGBT rectifier deliver clean, reliable power, protecting your sensitive equipment from power disruptions. The UPS is also eligible for the Energy Technology List (ETL), enabling you to offset capital costs against taxable profits.

• Exceptional efficiency (up to 96.5%)
• Unmatched power density (466 kW per m²) in a compact footprint
• Hot-swappable modules that ensure no downtime during maintenance
• Intuitive 7-inch LCD touchscreen display
• Advanced communications options
• A choice of power modules – 15 kW or 25 kW in 2U height (MPW) or the standard 42 kW (MPX)

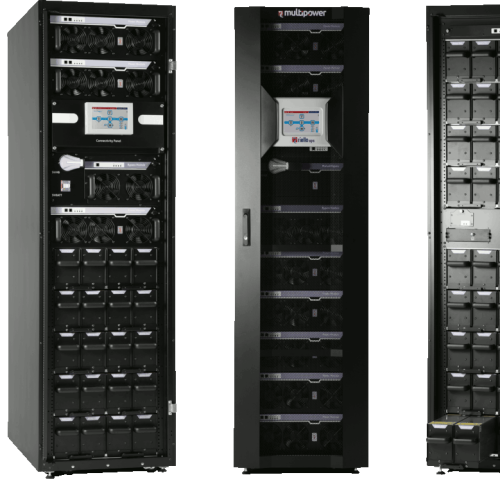

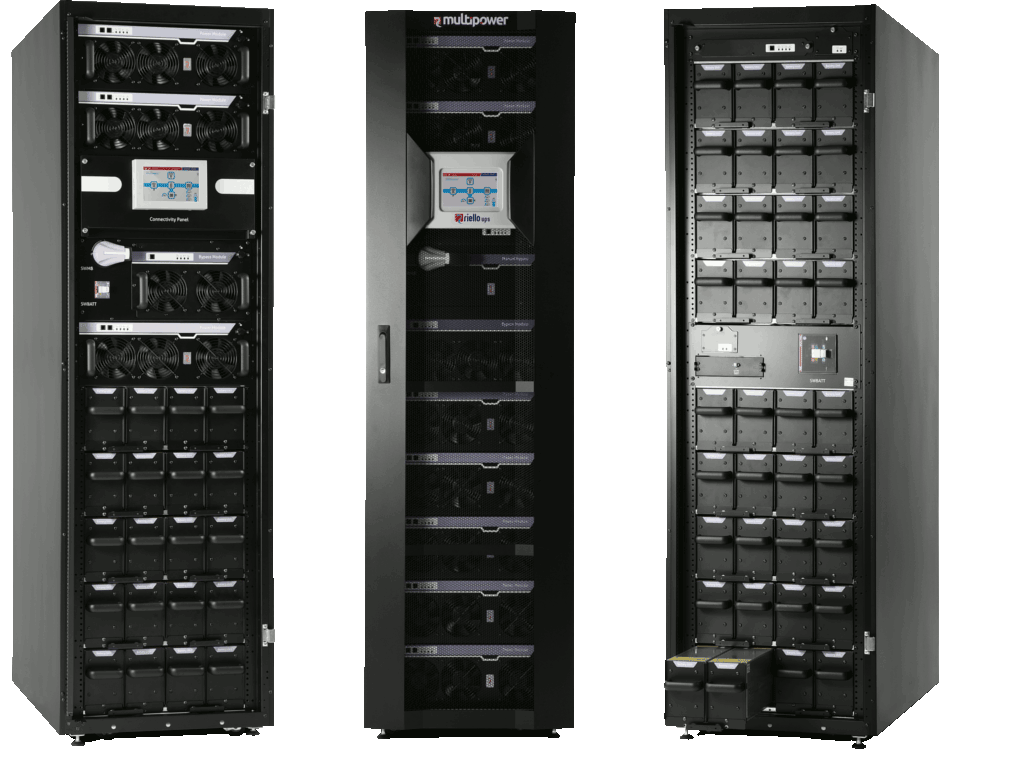

• Space-saving combination cabinets housing both power modules and battery units
  “Pay as you grow” by adding extra power modules (15-60 kW, 25-100 kW, or 42-252 kW power plus redundancy in a single chassis)

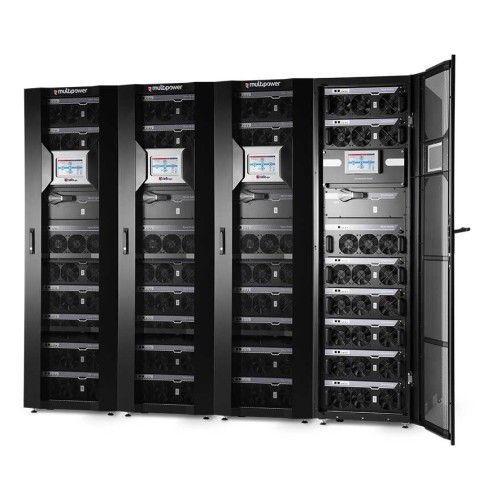

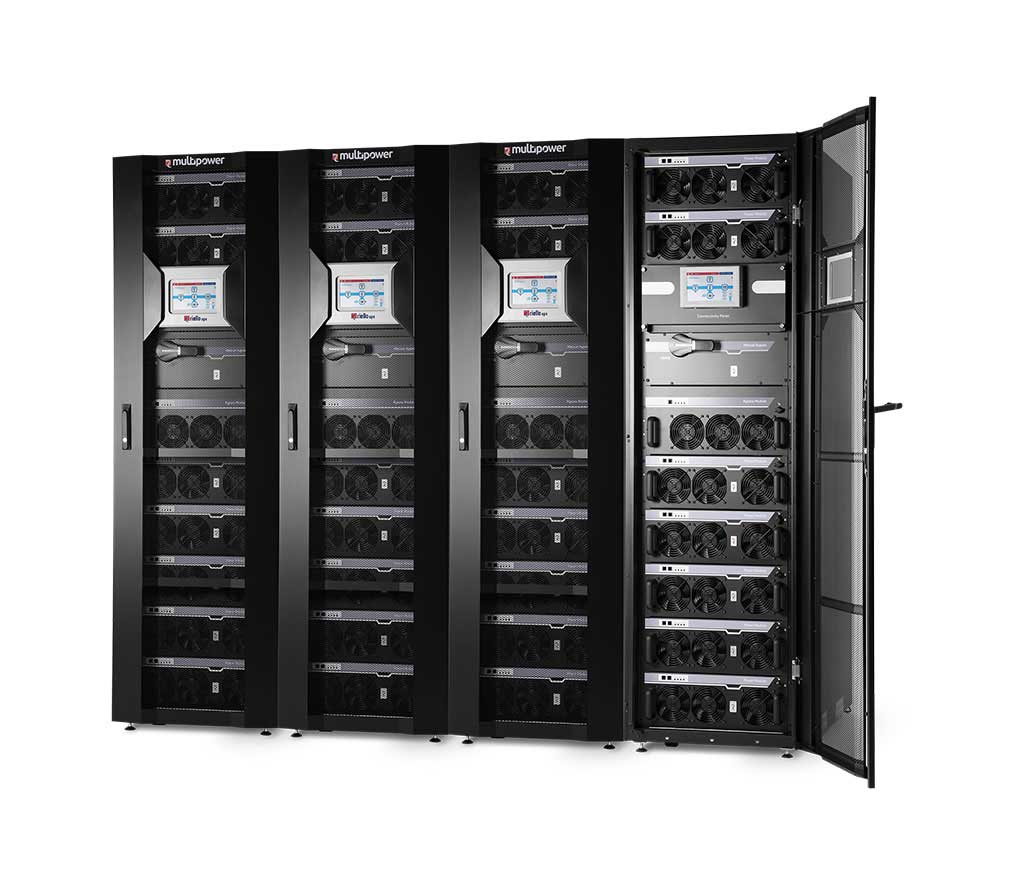

• Parallel up to 4 cabinets together and you can easily scale up power to:(MPX 15 kW modules): 15-240 kW N+1, (MPX 25 kW modules) 25-400 kW N+1, (MPW 42 kW modules): 42-1008 kW N+1
• Hot system expansion ensures there’s no downtime
• Outstanding Protection includes a three-level inverter and IGBT rectifier that delivers full-rated (pf 1) unity power
• All components perform even at high temperatures of 40 °C
• Each power module features 3 microprocessors
• Power cabinets have 2 microprocessors
• High Efficiency At All Load Levels - 96.5% efficiency in ONLINE double conversion mode.
• Energy Saving Mode, it’s capable of high efficiency (95%+) even at loads as low as 20-25%
• Eligible for Energy Technology List (ETL), allowing you to offset the capital costs against your taxable profits
• Downtime-Free Maintenance Guaranteed

For a comprehensive breakdown of technical specifications, feature sets and compatibility information for each product variant, please access the dedicated 'Details' tab located adjacent to each listing.
