UPS

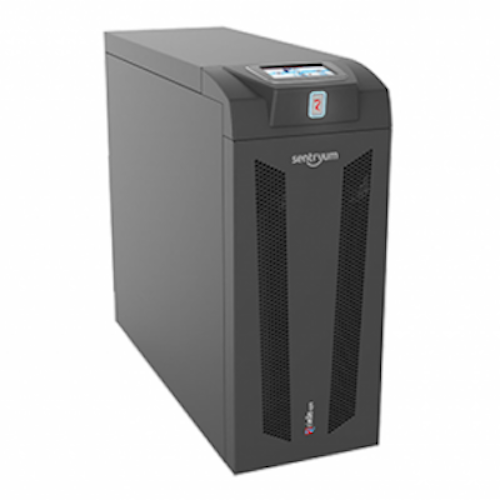

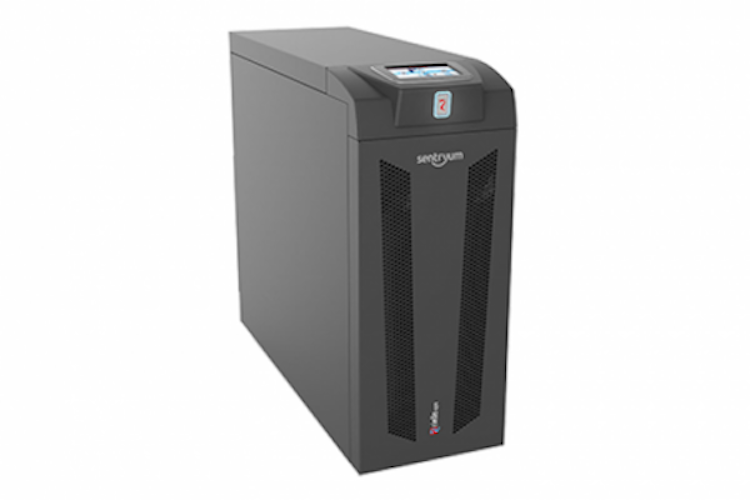

Riello Sentryum S3T Xtend Three Phase UPS
Empower your critical three-phase applications with the Riello Sentryum S3T Xtend UPS, a next-generation transformerless solution delivering exceptional efficiency, advanced control, and scalable reliability without internal batteries.
- Maximum Power Efficiency and Unity Power Factor.
- Advanced Harmonic Distortion Control and Enhanced Availability.
- Intuitive Monitoring and Scalable Redundancy.
| Model | SKU | kVA | Battery Cabinet | Input Phase | Output Phase | |
|---|---|---|---|---|---|---|
| Riello Sentryum 100kVA A0 S3T Xtend 3/3 Phase | S3T 100 | 100 | A0 | Three Phase | Three Phase | |
| Riello Sentryum 120kVA A0 S3T Xtend 3/3 Phase | S3T 120 | 120 | A0 | Three Phase | Three Phase | |
| Riello Sentryum 30kVA AO S3T Xtend 3/3 Phase | S3T 30 XTD A0 | 30 | A0 | Three Phase | Three Phase | |
| Riello Sentryum 30kVA T4 S3T Xtend 3/3 Phase | S3T 30 XTD T4 | 30 | T4 | Three Phase | Three Phase | |
| Riello Sentryum 30kVA T5 S3T Xtend 3/3 Phase | S3T 30 XTD T5 | 30 | T5 | Three Phase | Three Phase | |
| Riello Sentryum 40kVA A0 S3T Xtend 3/3 Phase | S3T 40 XTD A0 | 40 | A0 | Three Phase | Three Phase | |
| Riello Sentryum 40kVA T4 S3T Xtend 3/3 Phase | S3T 40 XTD T4 | 40 | T4 | Three Phase | Three Phase | |
| Riello Sentryum 40kVA T5 S3T Xtend 3/3 Phase | S3T 40 XTD T5 | 40 | T5 | Three Phase | Three Phase | |
| Riello Sentryum 60kVA A0 S3T Xtend 3/3 Phase | S3T 60 XTD A0 | 60 | A0 | Three Phase | Three Phase | |
| Riello Sentryum 60kVA T5 S3T Xtend 3/3 Phase | S3T 60 XTD T5 | 60 | T5 | Three Phase | Three Phase | |
| Riello Sentryum 80kVA A0 S3T Xtend 3/3 Phase | S3T 80 | 80 | A0 | Three Phase | Three Phase |
| Additional Downloads |
|---|
Home Office
Telecommunications
Data Centre
SME Use
Sentryum S3T Xtend: High-Efficiency, Scalable Three-Phase Power Protection
Unmatched Efficiency and Unity Power Factor for Critical Applications:
The Riello Sentryum S3T Xtend UPS represents the latest advancement in transformerless online UPS technology, delivering exceptional efficiency and reliability for three-phase applications. This unit, designed without internal batteries (external battery cabinets required), achieves up to 96.5% efficiency in online double conversion mode, even at loads as low as 50%, minimising energy consumption and operational costs. It also boasts a unity power factor, ensuring maximum power delivery and optimal performance.
Advanced Harmonic Distortion Control and Enhanced Availability:
The Sentryum S3T features a powerful control system that minimises harmonic voltage distortion, maintaining less than 1% distortion at resistive loads and less than 1.5% at non-linear loads. This advanced control system enhances overload and short circuit capacity, guaranteeing maximum system availability and protecting sensitive equipment from power disruptions. Designed for three-phase input and output.
Intuitive Monitoring and Scalable Redundancy:
Stay informed with the Sentryum S3T's intuitive 5-inch colour touchscreen display, providing real-time UPS status and measurements. The intelligent LED status indicator changes colour to reflect the current operating state, simplifying system monitoring. For growing power requirements or increased redundancy, this UPS can be paralleled up to 8 units. This scalable architecture ensures continuous operation and adaptability, making it ideal for critical three-phase applications.
- No Internal Batteries
- Three Phase Input
- Three Phase Output
- 5-inch Colour Touchscreen
- LED Status Indicator
- Online Connectivity
- Tower Configuration
| Manufacturer | Riello UPS |
| Connectivity | Online |
| Configuration | Tower |
| Input Phase | Three |
| Output Phase | Three |
For a comprehensive breakdown of technical specifications, feature sets and compatibility information for each product variant, please access the dedicated 'Details' tab located adjacent to each listing.
