UPS Bypass Switch

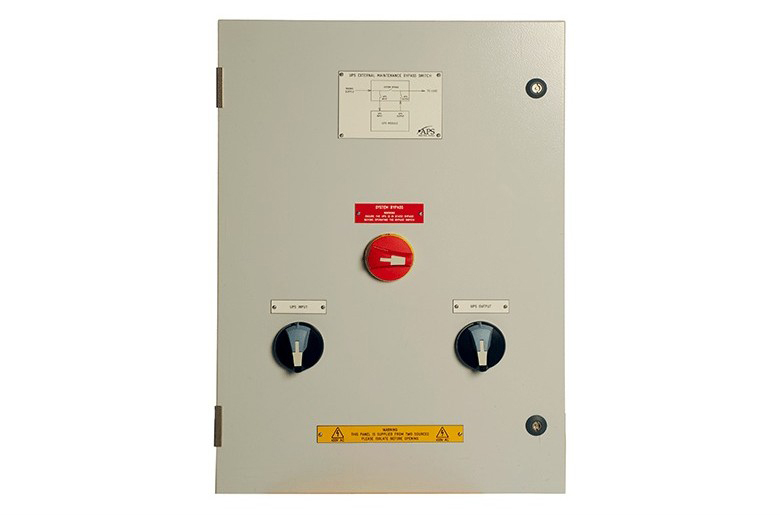

Wall Mount 1/1 Phase Bypass Switch
Ensure uninterrupted power flow during UPS maintenance or replacement with the Wall Mount 1/1 Phase Bypass Switch, designed for seamless isolation and minimal downtime in critical single-phase applications.
- Seamless UPS Isolation
- Flexible Installation and Operation
- Robust Design and Enhanced Safety
Model | SKU | AMPS | Input Phase | Output Phase | |
---|---|---|---|---|---|
125Amp Wall Mount 1/1 Phase Bypass Switch | APS125/11/2 | 125 | Single Phase | Single Phase | |
160Amp Wall Mount 1/1 Phase Bypass Switch | APS160/11/2 | 160 | Single Phase | Single Phase | |
32Amp Wall Mount 1/1 Phase Bypass Switch | APS32/11/2 | 32 | Single | Single | |
63Amp Wall Mount 1/1 Phase Bypass Switch | APS63/11/2 | 63 | Single Phase | Single Phase | |
80Amp Wall Mount 1/1 Phase Bypass Switch | APS80/11/2 | 80 | Single Phase | Single Phase |
Home Office
Telecommunications
Data Centre
SME Use
Wall Mount 1/1 Phase Bypass Switch: Uninterrupted Power for Critical Single-Phase Applications
Seamless UPS Isolation and Maintenance:
The Adept Power Solutions Wall Mount 1/1 Phase Bypass Switch provides essential isolation for uninterruptible power supply (UPS) systems, allowing for safe and efficient maintenance or replacement without disrupting critical loads. This bypass switch minimises downtime and associated costs, ensuring continuous operation of sensitive equipment. Ideally supplied during initial UPS installation, it simplifies cabling and system commissioning, allowing installers to bring the system online before integrating the UPS. It can also be retrofitted into existing UPS installations.
Flexible Installation and Intelligent Operation:
Designed for ease of installation, the bypass switch features top/bottom cable entry, providing flexibility for various installation environments. Pre-break auxiliary contacts are included, enabling compatible UPS systems to automatically transfer to static bypass when the switch is operated, ensuring seamless transitions. The standard configuration includes terminals for mains, load, UPS input, and UPS output, along with UPS input, UPS output, and system bypass switches.
Robust Construction and Enhanced Safety Features:
Built for reliability and safety, the 32Amp Wall Mount 1/1 Phase Bypass Switch features high-quality isolators and pad-lockable switch handles, preventing unauthorised operation. Clear Traffolyte labelling ensures easy identification and operation. This single-phase, wall-mounted bypass switch is backed by a 5-year warranty, providing peace of mind and long-term reliability for critical single-phase applications.
- High-quality isolators
- Top/bottom cable entry
- Pre-break auxiliary contacts
- Traffolyte labelling
- Padlockable switch handles
- Single Phase
- Wall Mounted
- 5 Year Warranty
Manufacturer | Adept Power Solutions |
Input Phase | Single |
Output Phase | Single |
For a comprehensive breakdown of technical specifications, feature sets and compatibility information for each product variant, please access the dedicated 'Details' tab located adjacent to each listing.
